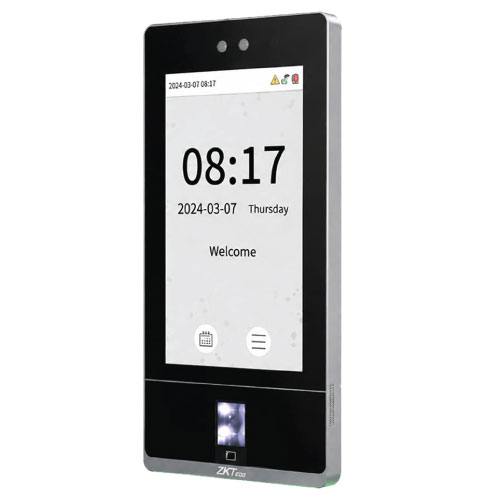

ZKTeco SenseFace 7A Plus Access Control Terminal

• Model: SenseFace 7A Plus
• Display: 7″@ TFT Color Touch LED Screen (600*1024)
• Camera: WDR Binocular Camera @ 1MP
• Operation System: Linux
• Hardware:CPU: Dual Core@1GHz
  RAM: 512MB; ROM: 8GB
  Speaker: 8 ohm@1 W
  Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ)
  Supplement Light: No
  Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 7A / SenseFace 7A Plus (Big Capacity Version))
• Authentication Method:SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad)
  SenseFace 7B: Face / Card / Password (Virtual Keypad)
  SenseFace 7A (Big Capacity Version) : Fingerprint / Face / Card / Password (Virtual Keypad)
  SenseFace 7B (Big Capacity Version) : Face / Card / Password (Virtual Keypad)
• Fingerprint Template Capacity:SenseFace 7A: 10,000 (1:N) (Standard)
  SenseFace 7B: /
  SenseFace 7A (Big Capacity Version) : 50,000 (1:N) (Standard)
  SenseFace 7B (Big Capacity Version) : /
• Face Template Capacity:SenseFace 7A / 7B: 10,000 (1:N)
  SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N)
• Card Capacity:SenseFace 7A / 7B: 50,000 (1:N) (Standard)
  SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N) (Standard)
• User Capacity:SenseFace 7A / 7B: 50,000 (1:N) (Standard)
  SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N) (Standard)
• Transaction Capacity:SenseFace 7A / 7B: 300,000
  SenseFace 7A / 7B (Big Capacity Version) : 300,000
• Max. User Password Length: 8 Digits
• Biometric Verification Speed:SenseFace 7A / SenseFace 7A (Big Capacity Version) : less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)
  SenseFace 7B / SenseFace 7B (Big Capacity Version): less than 0.35 sec (Facial Authentication)
• Touchless Biometric Recognition Distance: 30cm to 200cm (Facial Authentication)
• False Acceptance Rate (FAR) %:SenseFace 7A / SenseFace 7A (Big Capacity Version): FAR ≤ 0.01% (Visible Light Facial Authentication); FAR ≤ 0.0001% (Fingerprint)
  SenseFace 7B / SenseFace 7B (Big Capacity Version): FAR ≤ 0.01% (Visible Light Facial Authentication)
• False Rejection Rate (FRR) %:SenseFace 7A / SenseFace 7A (Big Capacity Version): FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint)
  SenseFace 7B / SenseFace 7B (Big Capacity Version): FRR ≤ 0.02% (Visible Light Facial Authentication)
• Biometric Algorithm:SenseFace 7A: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
  SenseFace 7B: ZKFace V4.0
  SenseFace 7A (Big Capacity Version) : ZKFace V3.7 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
  SenseFace 7B (Big Capacity Version) : ZKFace V3.7
• Card Type:ID Card @ 125 kHz (Standard)
  IC Card @ 13.56 MHz (Optional)
• Communication:TCP/IP*1
  Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
  Wiegand (Input or Output)*1
  RS485: ZKTeco RS485*1
  USB: Type A (USB Drive Only)*1
  Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
• Standard Functions:ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
• Optional Functions: IC Card, Wi-Fi, Wireless Doorbell
• Access Control Interface: RS485 (RS485 Card Reader / Biometric Reader)
• Video Intercom:Video Intercom(ZKTeco Private Protocol via TCP/lP)
  Support Devices:
  Standalone Terminal: SenseFace Series;
  Indoor Monitor: VT07-B01, VT07-B01-WVideo Intercom (Standard SIP Protocol)
  Support Devices:
  Standalone Terminal: SenseFace series;
  Indoor Monitor: VT07-B22L, VT07-B26L-W;
  Software: ZKBio CVSecurity, BioTalk Pro;
  Mobile App: ZKBio Zlink, ZKBio Zexus
• Net Weight: 0.622 Kg
• Power Supply: DC 12V 3A (Optional)
• Operating Temperature: -5°C to 45°C
• Supported Software:On-Premise Software: ZKBio CVSecurity (AC PUSH) & ZKBio Time (TA PUSH)
  Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)

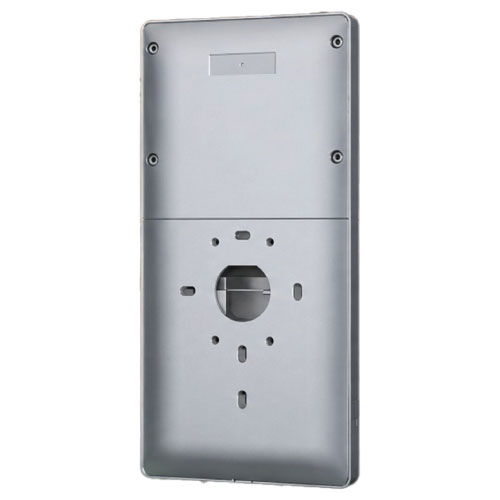

• Installation: Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
• Operating Humidity: 10% to 90% RH (Non-condensing)
• Dimensions:SenseFace 7A / SenseFace 7A (Big Capacity Version) : 238mm * 115mm * 22.3mm (L*W*H)
  SenseFace 7B / SenseFace 7B (Big Capacity Version) : 214mm * 115mm * 22.3mm (L*W*H)
• Ingress Protection Rating: IP65 (waterproof and dustproof )
• Certifications: ISO14001, ISO9001, CE, FCC, RoHS
• Output Contact: 2
