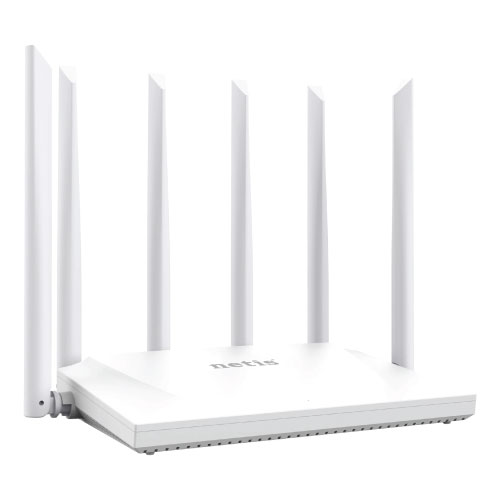

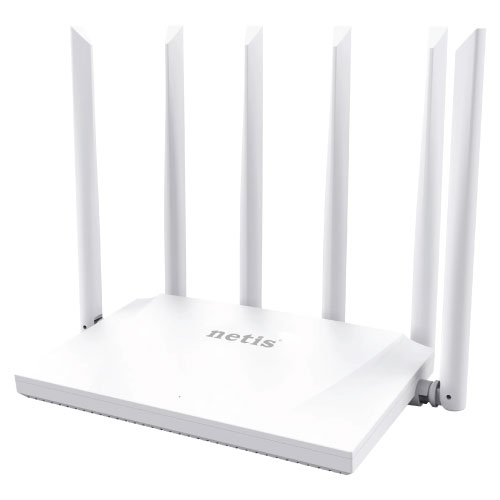

Netis NC63 AC1200 Mbps Gigabit Dual-Band Wi-Fi 5 Router

Wireless

Standards:
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Signal Rate:
Up to 300Mbps2.4GHz
UP to 867Mbps 5GHz

Frequency Range:
2.4-2.4835GHz;5.180-5.825GHZ

Transmit Power:
20dBm(MAX)

Data Transfer Rate:
802.11ac:80MHZ(433Mbps, 867Mbps)

802.11n:

40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
803.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes:
AP Router,   Repeater, Client, Multi-SSID

Wireless Security:
WEP/WPA-PSK/WPA2-PSK/WPA/WPA2-PSK Encryption
Wireless MAC Filtering

Hardware

Standards:
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Interface:
1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port
3*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port

LED Indicators:
PWR、Internet

Buttons:
Reset

Antenna:
6* external fixed 5dBi antenna

Power Supply:
DC 12V/1.0A(Output)

Dimensions(L x W x H ):
182mm*108mm*35mm

WAN Type:
DHCP, Static IP, PPPoE,（Russia PPPoE）, L2TP, PPTP,

Others:
Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing,   Backup & Restore

Others

Certification:
FCC, CE, EAC

Environment:
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package:
1* NC63
1* Power Adapter
1* Quick Installation Guide (Multilingual)
