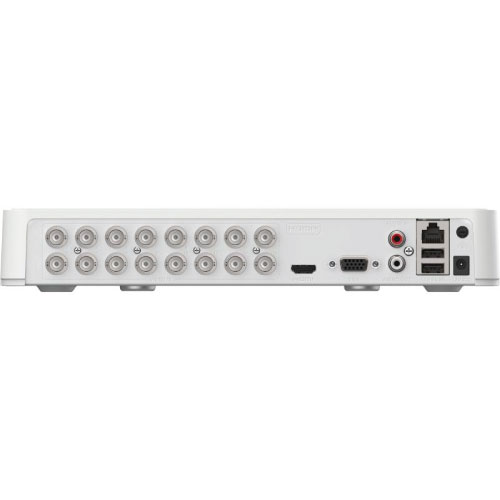

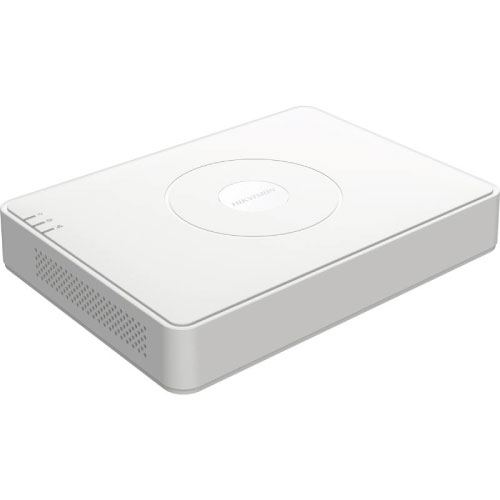

Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Video and Audio

• IP Video Input

  2-ch (up to 18-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback16-ch

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For standard definition stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth96 Mbps
• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA1, SATA interface
• CapacityUp to 6 TB capacity for each disk
• USB Interface2 × USB 2.0

General

• Power Supply12 VDC, 2 A
• Consumption≤ 7 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
• ≤ 1.8 kg (without HDD, 4.0 lb.)
