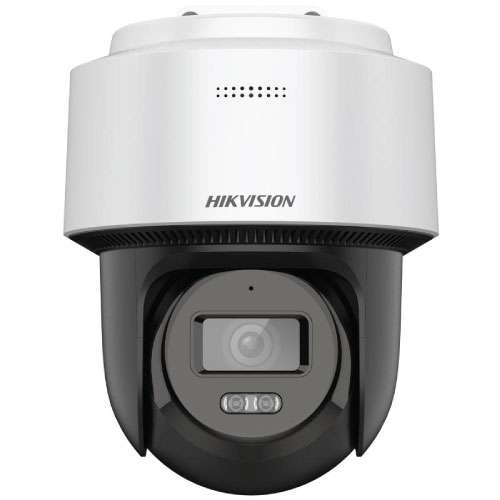

Hikvision DS-2DE2C200MWG-E 2 MP Smart Hybrid Light Mini PT Network Camera

Camera

• Image Sensor1/2.9″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light

Lens

• Focal Length2.8 mm, 4 mm
• FOV:

  2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°

  4 mm, horizontal FOV 81°, vertical FOV 44°, diagonal FOV 97°

• ApertureF2.0

Illuminator

• Supplement Light TypeIR,White Light
• Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 30 m
• IR Wavelength850 nm

PTZ

• Movement Range (Pan)0° to 345°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 20°/s

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video CompressionH.265, H.264, MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile

Audio

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
• Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
• Audio Sampling Rate8 kHz,16 kHz
• Environment Noise FilteringYes

Network

• ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK


• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone1 built-in microphone
• On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker1 built-in speaker

Event

• Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General

• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

• Dimension

  Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31\” × 5.19\”)

  With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46\” × 9.06\”)”

• Camera weight: 600 g (1.32 lb.)

  With package weight: 900 g (2.0 lb.)

• MaterialPlastic
• Operating Condition-30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
• General FunctionMirror, password protection, watermark

Approval

• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
• EnvironmentCE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013)
