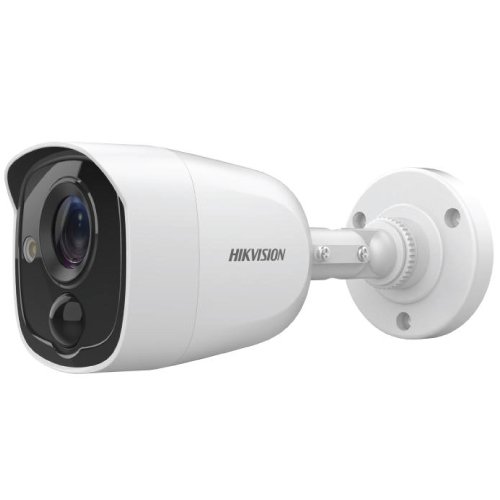

Hikvision DS-2CE11H0T-PIRLO 5MP PIR Fixed Mini Bullet Camera

Camera

• Image Sensor5 MP CMOS image sensor
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time:

  PAL: 1/20 s to 1/50,000 s

  NTSC: 1/20 s to 1/50,000 s

• Day & NightICR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal SystemPAL/NTSC
• Light AlarmYes

Lens

• Lens Type2.8 mm, 3.6 mm fixed lens
• Focal Length & FOV:

  2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°

  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.8°, diagonal FOV: 105.9°

• Lens MountM12


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
• Frame RateTVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceAuto/Manual
• White LightAUTO/OFF
• AGCSupport

Interface

• Video Output1 HD analog output

General

• MaterialPlastic
• Dimension68 mm × 70 mm × 179.8 mm (2.68″ × 2.76″ × 7.08″)
• Approx. 358 g (0.79 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25%
• ConsumptionMax. 3.5 W
• IR RangeUp to 20 m

Approval

• ProtectionIP67
