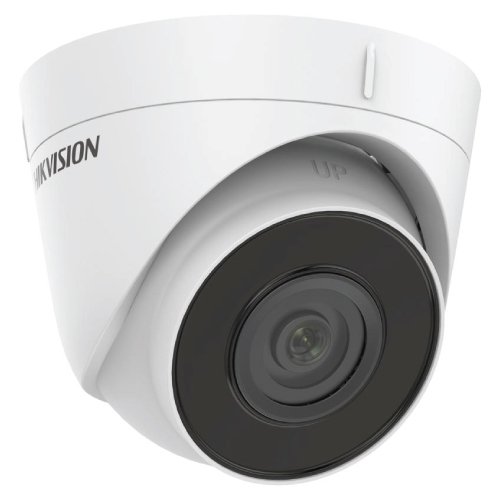

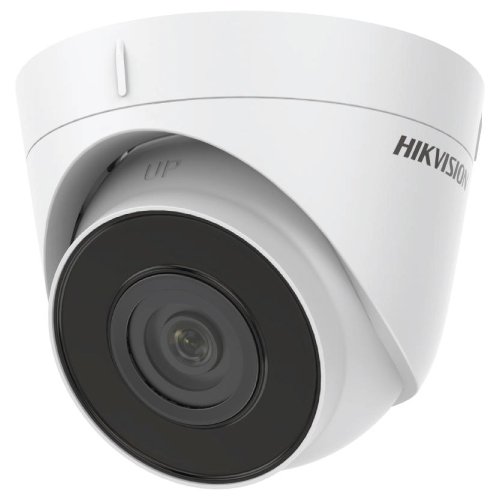

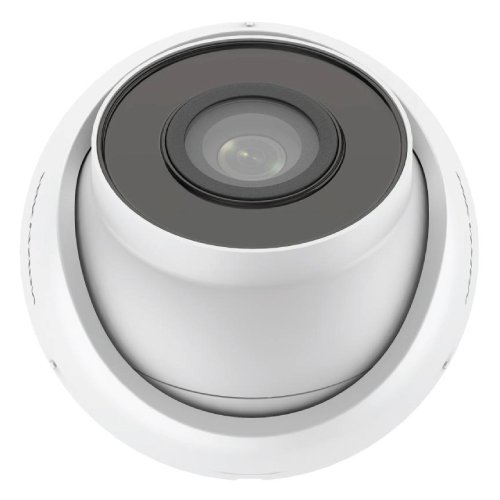

Hikvision DS-2CD1323G0E-I 2MP Fixed Turret Network Camera

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV:

  2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°

  4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.0

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main Stream: H.265/H.264/H.264+/H.265+

  Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region of Interest (ROI)1 fixed region for main stream

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser:

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Image EnhancementBLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email

General

• Power:

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• DimensionØ110 mm × 85.3 mm (Ø4.3″ × 3.4″)
• Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Approx. 320 g (0.7 lb.)
• With Package WeightApprox. 556 g (1.2 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
