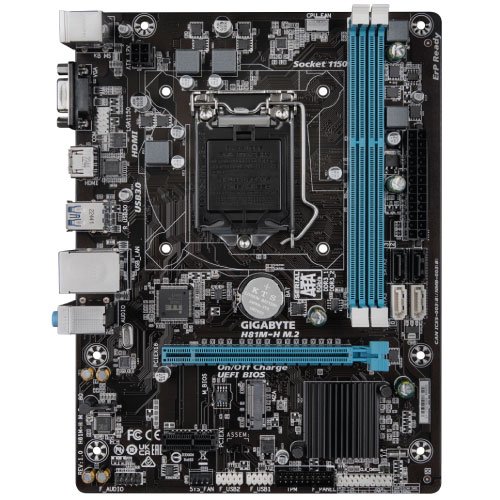

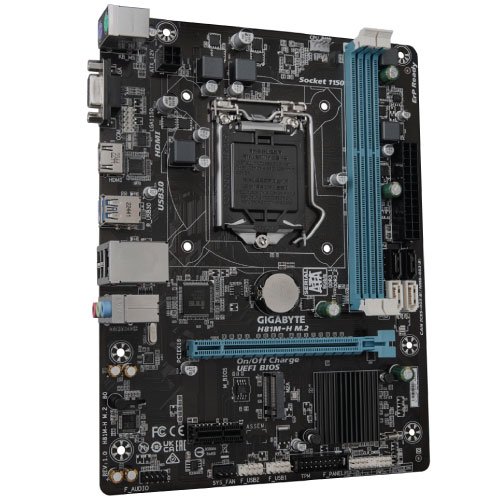

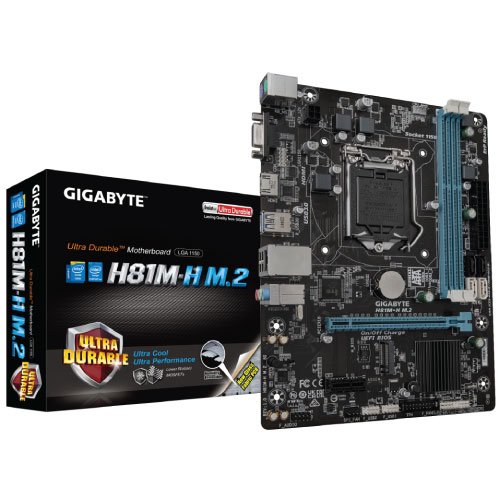

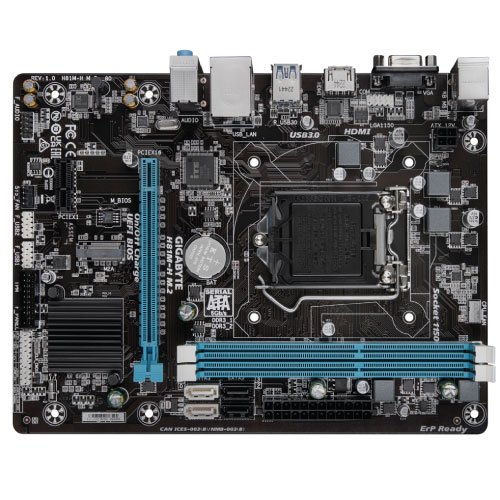

Gigabyte Intel GA-H81M-H M.2 DDR3 Motherboard

Name: Gigabyte Intel GA-H81M-H M.2 DDR3 Motherboard
Brand: GIGABYTE
SKU: 11584
Price: 9500.00 BDT
Availability: InStock

No reviews yet

In stock

COD available

Delivery 1 Day

Return Policy Based

Return support is available for valid issues after delivery. Please keep packaging and invoice.

৳9,500.00 /pc

3 available

QTY

Delivery & Payment

Delivery across Bangladesh within 24 to 72 hours in most cases.
Cash on delivery is available for this product on eligible orders.
Safe and secure payment options.

Return & Support

Return support is available for valid issues according to the return policy.
Keep the product, accessories, invoice, and packaging for faster support review.
Shop One support helps with delivery, return, and order follow-up.

Buyer-first checkout Review price, delivery, and payment option before confirming the order.

Order proof kept Your order history and invoice help support resolve issues faster.

Deals You Can't Miss

Product Overview

Everything you need to know before placing the order.

Buyer-first details

CPU
1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1150 package
2. L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
1. Intel^® H81 Express Chipset
Memory
1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160
  * Support for HDMI 1.4a version.
3. Maximum shared memory of 1 GB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support)
2. 2 x SATA 6Gb/s connectors (SATA3 0/1)
3. 2 x SATA 3Gb/s connectors (SATA2 2/3)
  * The M2A connector shares bandwidth with the SATA3 0 connector. The SATA3 0 connector will become unavailable when an SATA SSD is installed in the M2A connector.
  Refer to “2-7 Internal Connectors,” “8) M2A (M.2 Socket 3 Connector),” for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 2 x SATA 6Gb/s connectors
5. 2 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 2 x USB 2.0/1.1 headers
11. 1 x serial port header
12. 1 x Clear CMOS jumper
13. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for Q-Flash
2. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  EZ Setup
  USB Blocker
  Smart TimeLock
  Smart Recovery 2
  Support for ON/OFF Charge
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 10/7
Form Factor
1. Micro ATX Form Factor; 23.0cm x 17.5cm
