Computer & TV Accessories Gigabyte Intel

GIGABYTE INTEL GA-H110M-S2PH Motherboard thumbnail

Computer & TV Accessories | Brand: GIGABYTE

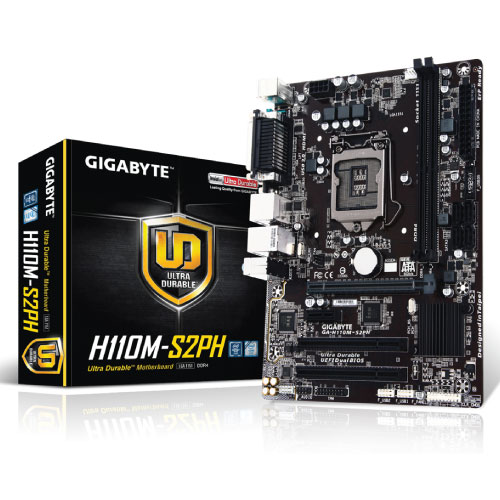

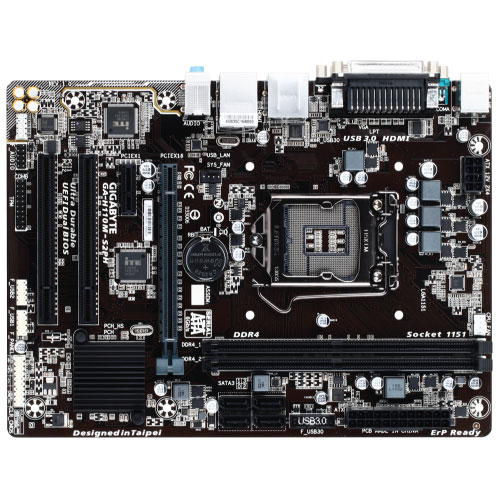

GIGABYTE INTEL GA-H110M-S2PH Motherboard

Name: GIGABYTE INTEL GA-H110M-S2PH Motherboard
Brand: GIGABYTE
SKU: 10990
Price: 9600.00 BDT
Availability: InStock

No reviews yet

In stock

COD available

Delivery 1 Day

Return Policy Based

Return support is available for valid issues after delivery. Please keep packaging and invoice.

৳9,600.00 /pc

3 available

QTY

Delivery & Payment

Delivery across Bangladesh within 24 to 72 hours in most cases.
Cash on delivery is available for this product on eligible orders.
Safe and secure payment options.

Return & Support

Return support is available for valid issues according to the return policy.
Keep the product, accessories, invoice, and packaging for faster support review.
Shop One support helps with delivery, return, and order follow-up.

Buyer-first checkout Review price, delivery, and payment option before confirming the order.

Order proof kept Your order history and invoice help support resolve issues faster.

Deals You Can't Miss

Product Overview

Everything you need to know before placing the order.

Buyer-first details

CPU:
1. Support for 7^th/6^th Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  * For 7^th Generation Intel^® Core™ processors support need to update the latest BIOS.
2. L3 cache varies with CPU
Chipset: Intel^® H110 Express Chipset
Memory:
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2400/2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics:
1. Integrated Graphics Processor – Intel^® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
  * Support for HDMI 1.4 version.
2. Maximum shared memory of 1024 MB
Audio:
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN: Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots:
1. 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slots conform to PCI Express 3.0 standard.)
2. 1 x PCI Express x1 slot
  (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
3. 2 x PCI slots
Storage Interface:
Chipset:
1. 4 x SATA 6Gb/s connectors
USB:
Chipset:
1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors:
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x serial port header
12. 1 x Trusted Platform Module (TPM) header
13. 1 x Clear CMOS jumper

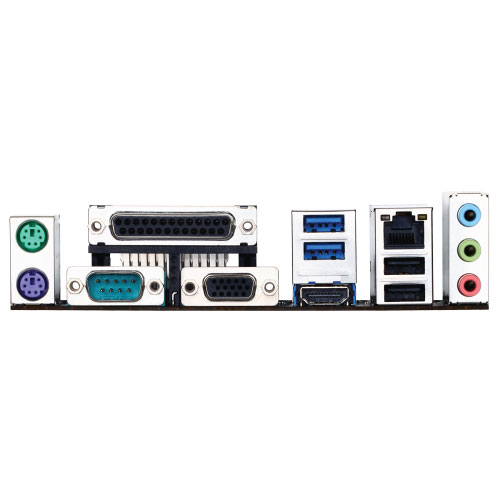

Back Panel Connectors:
1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x D-Sub port
4. 1 x parallel port
5. 1 x serial port
6. 1 x HDMI port
7. 2 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller: iTE^® I/O Controller Chip
H/W Monitoring:
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
1. Support for APP Center
  * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Smart TimeLock
  Smart Keyboard
  Smart Backup
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for Smart Switch
Bundled Software:
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System:
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor: Micro ATX Form Factor; 24.4cm x 18.0cm
