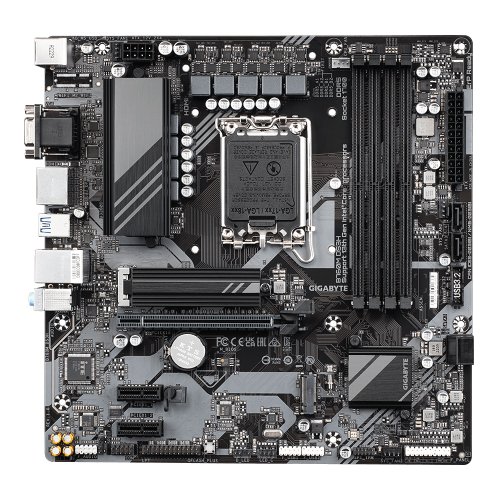

Gigabyte Intel Chipset B760M DS3H 13th and 12th Gen mATX Motherboard

Name: Gigabyte Intel Chipset B760M DS3H 13th and 12th Gen mATX Motherboard
Brand: GIGABYTE
SKU: 11548
Price: 17500.00 BDT
Availability: InStock

No reviews yet

In stock

COD available

Delivery 1 Day

Return Policy Based

Return support is available for valid issues after delivery. Please keep packaging and invoice.

৳17,500.00 /pc

3 available

QTY

Delivery & Payment

Delivery across Bangladesh within 24 to 72 hours in most cases.
Cash on delivery is available for this product on eligible orders.
Safe and secure payment options.

Return & Support

Return support is available for valid issues according to the return policy.
Keep the product, accessories, invoice, and packaging for faster support review.
Shop One support helps with delivery, return, and order follow-up.

Buyer-first checkout Review price, delivery, and payment option before confirming the order.

Order proof kept Your order history and invoice help support resolve issues faster.

Deals You Can't Miss

Product Overview

Everything you need to know before placing the order.

Buyer-first details

Basic Information
Brand	GIGABYTE
Model	B760M DS3H DDR5
Supported CPU	12th/13th Gen Intel Processors (LGA1700)
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out

Expansion Slots
PCI	CPU:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Graphics:
Graphics	Integrated Graphics Processor-Intel庐 HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz km
	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version.
	Support for up to quad-display at the same time

Connector & Ports:
HDMI	1x HDMI
Display Port (s)	2x DisplayPort
USB (s)	Chipset:
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Network & Connectivity	LAN Chipset; Realtek 2.5GbE LAN chip
	LAN Speed (Mbps): 10/100/1000/2500 Mb/s
	WiFi: No
	Bluetooth: No
Supported Storage	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
	USB Port: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 Type-A, 3 x USB 3.2 Gen 1
	VGA Port: No
	DVI Port: No
	IDE Port: No
	SATA Port: 4
	Thunderbolt: No
	COM Port: No
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Memory:
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory

Others:
Special Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software

Warranty Info
Years	3 Years
