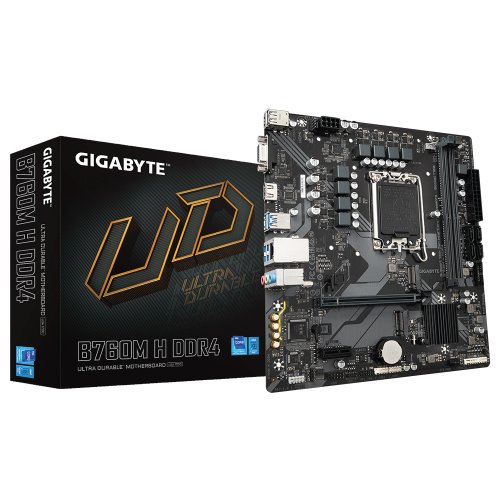

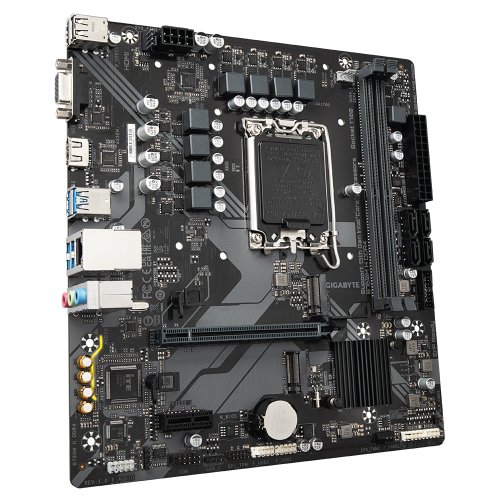

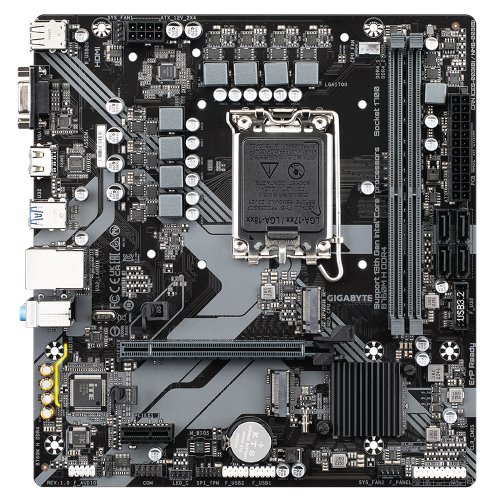

Gigabyte Intel Chipset B760M H DDR4 Motherboard

Name: Gigabyte Intel Chipset B760M H DDR4 Motherboard
Brand: GIGABYTE
SKU: 11574
Price: 14700.00 BDT
Availability: InStock

No reviews yet

In stock

COD available

Delivery 1 Day

Return Policy Based

Return support is available for valid issues after delivery. Please keep packaging and invoice.

৳14,700.00 /pc

3 available

QTY

Delivery & Payment

Delivery across Bangladesh within 24 to 72 hours in most cases.
Cash on delivery is available for this product on eligible orders.
Safe and secure payment options.

Return & Support

Return support is available for valid issues according to the return policy.
Keep the product, accessories, invoice, and packaging for faster support review.
Shop One support helps with delivery, return, and order follow-up.

Buyer-first checkout Review price, delivery, and payment option before confirming the order.

Order proof kept Your order history and invoice help support resolve issues faster.

Deals You Can't Miss

Product Overview

Everything you need to know before placing the order.

Buyer-first details

Basic Information
Brand	GIGABYTE
Model	B760M H DDR4
Supported CPU	12th/13th Gen Intel Processors (LGA1700)
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out

Expansion Slots
PCI	CPU:
	– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Graphics:
Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
	– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.

Connector & Ports:
HDMI	1x HDMI
D-Sub (s)	1x D-Sub
USB (s)	Chipset:
	– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Network & Connectivity	LAN Chipset: Realtek GbE LAN chip
	LAN Speed (Mbps); 10/100/1000 Mb/s
	WiFi: No
	Bluetooth: No
Supported Storage	CPU:
	– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	– 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Memory:
Type	DDR4
Slots	2
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory

Others:
Special Features	Support for GIGABYTE Control Center (GCC)
Special Features	Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software

Warranty Info
Years	3 Years
