Gigabyte Intel Chipset B760 GAMING X AX 13th and 12th Gen ATX Motherboard thumbnail

Computer & TV Accessories | Brand: GIGABYTE

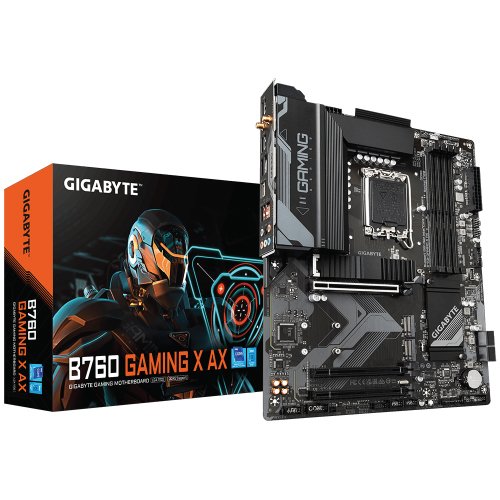

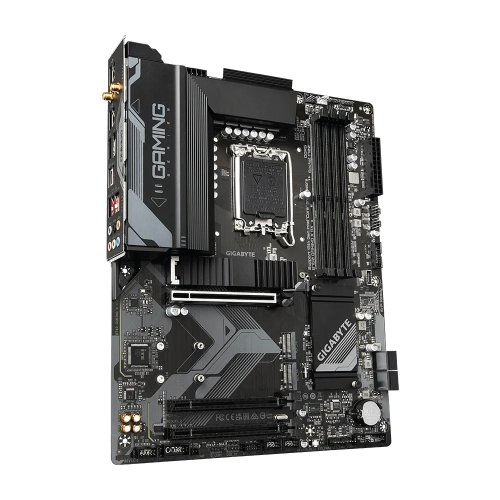

Gigabyte Intel Chipset B760 GAMING X AX 13th and 12th Gen ATX Motherboard

Name: Gigabyte Intel Chipset B760 GAMING X AX 13th and 12th Gen ATX Motherboard
Brand: GIGABYTE
SKU: 11544
Price: 24000.00 BDT
Availability: InStock

No reviews yet

In stock

COD available

Delivery 1 Day

Return Policy Based

Return support is available for valid issues after delivery. Please keep packaging and invoice.

৳24,000.00 /pc

3 available

QTY

Delivery & Payment

Delivery across Bangladesh within 24 to 72 hours in most cases.
Cash on delivery is available for this product on eligible orders.
Safe and secure payment options.

Return & Support

Return support is available for valid issues according to the return policy.
Keep the product, accessories, invoice, and packaging for faster support review.
Shop One support helps with delivery, return, and order follow-up.

Buyer-first checkout Review price, delivery, and payment option before confirming the order.

Order proof kept Your order history and invoice help support resolve issues faster.

Deals You Can't Miss

Product Overview

Everything you need to know before placing the order.

Buyer-first details

Basic Information
Brand	Gigabyte
Model	Gigabyte B760 GAMING X AX
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Supported CPU	L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	Support for S/PDIF Out

Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI	Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Graphics:
Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.

Connector & Ports:
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset:
	1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
	3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
	1 x USB 2.0/1.1 port on the back panel
	Chipset+2 USB 2.0 Hubs:
	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.2
	Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
	Intel Wi-Fi 6E AX210 (PCB rev. 1.1)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.3
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Intel Wi-Fi 6E AX211 (PCB rev. 1.2)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.3
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.3
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU:
	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
	4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	6 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Memory:
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	192GB

Others:
Special Features	Support for GIGABYTE Control Center (GCC)
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software

Warranty Info
Years	3 Year
