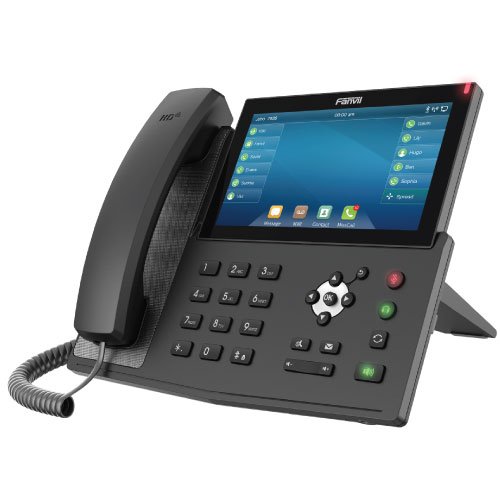

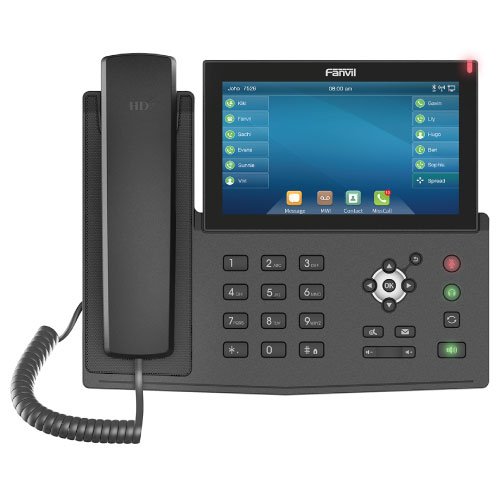

Fanvil X7 Enterprise IP Phone

Generic
⚫ 20 SIP Lines
⚫ HD Voice
⚫ Support receiving Video call
⚫ PoE Enabled
⚫ 7 inch capacitive touch screen
⚫ Handset / Hands-free / Headset mode
⚫ Intelligent DSS Keys
⚫ Optional External Power Supply
Phone Features
⚫ Local Phonebook (2000 entries)
⚫ Remote Phonebook (XML/LDAP, 2000 entries)
⚫ Call logs (In/out/missed, 1000 entries)
⚫ Blocked /Allowed List
⚫ Screen saver
⚫ Voice Message Waiting Indication (VMWI)
⚫ Programmable DSS/Soft keys
⚫ Network Time Synchronization
⚫ Built-in Bluetooth 4.2: Support Bluetooth headset
⚫ Support Wi-Fi Dongle
⚫ Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
⚫ Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

⚫ Support Recording (Through Flash Drive or Server Recording)
⚫ Action URL / Active URI
⚫ uaCSTA

Call Features
⚫ Call out / Answer / Reject
⚫ Mute / Unmute (Microphone)
⚫ Call Hold / Resume
⚫ Call Waiting
⚫ Intercom
⚫ Caller ID Display
⚫ Speed Dial
⚫ Anonymous Call (Hide Caller ID)
⚫ Call Forwarding (Always/Busy/No Answer)
⚫ Call Transfer (Attended/Unattended)
⚫ Call Parking/Pick-up (Depending on server)
⚫ Redial
⚫ Do-Not-Disturb
⚫ Auto-Answering
⚫ Voice Message (On server)
⚫ 6-way Conference
⚫ Hot Line
⚫ Hot desking

⚫ AES128 & AES256

Video
⚫ Video codec: H.264
⚫ Video call resolution: QCIF / CIF / VGA/1080P
⚫ Support USB camera (CM60 optional)
Audio
⚫ HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
⚫ HAC handset
⚫ Wideband ADC/DAC 16KHz Sampling
⚫ Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G726-16,G726-24,G726-40,G.729AB, iLBC
⚫ Wideband Codec: G.722, Opus
⚫ Full-duplex Acoustic Echo Canceller (AEC)
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer up to 300ms
⚫ DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Physical Specifications
⚫ Main LCD x1: 7.0 inch (1024×600) Capacitive touch screen
⚫ Keypad: 26 keys, including
➢ 5 Function keys (Hold, MWI,Mute,Headset, Redial)
➢ 4 Navigation keys
➢ 1 OK key
➢ 1 Return key
➢ 12 Standard Phone Digits keys
➢ 2 Volume Control keys, Up/Down
➢ 1 Hands-free key
⚫ HD Handset (RJ9) x1
⚫ Standard RJ9 Handset Wire x1
⚫ 1.5M CAT5 Ethernet Cable x1
⚫ Back Rack x1
⚫ RJ9 Port x2: Handset x1, Headset x1
⚫ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
⚫ USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
⚫ DC Power Input: 5V/2A
⚫ Power Consumption (PoE): 2.6~ 9W
⚫ Power Consumption (Adapter): 2.4~8W
⚫ Working Temperature: 0~45℃
⚫ Working Humidity: 10~95%
⚫ Qty/CTN：10pcs
⚫ N.W/CTN: 16.6kg
⚫ G.W/CTN: 17.72kg
⚫ Installation: Desktop Stand
⚫ Color: Black
⚫ Device Dimensions
➢ Desktop Stand (Angles 1): 268 x 185 x 189mm
➢ Desktop Stand (Angles 2): 268 x 201 x 168mm
⚫ Gift Box Dimensions: 304 x 297 x 66mm
⚫ Outer CTN Dimensions: 616 x 358 x 329mm (10 PCS)
