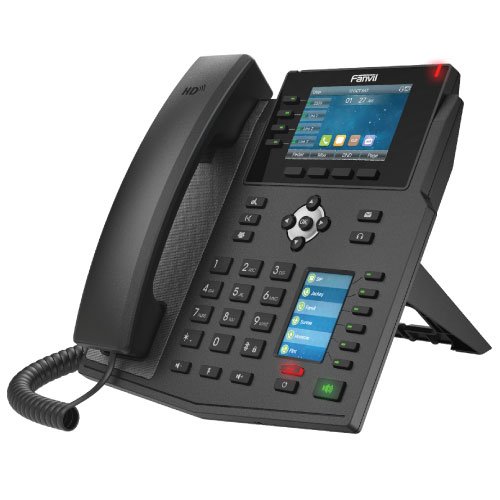

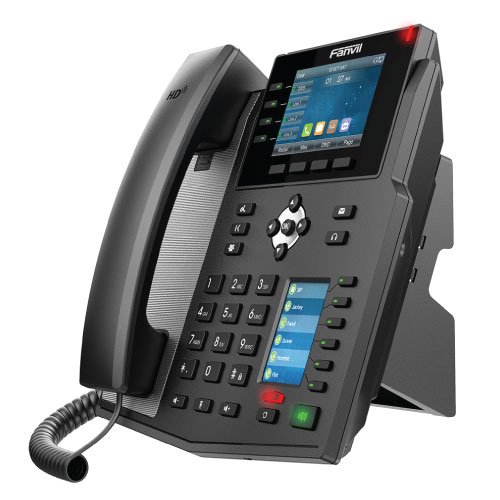

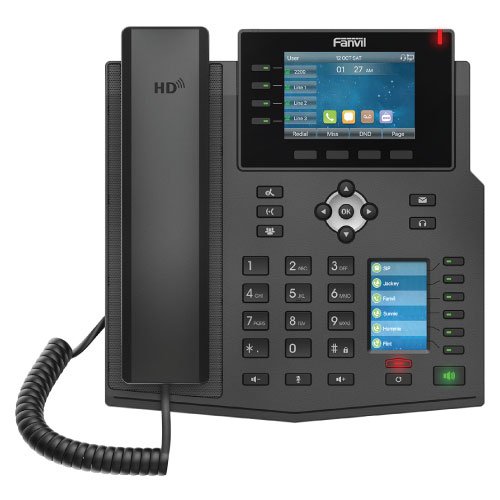

Fanvil X5U High-end IP Phone

Generic
 16 SIP Lines
 HD voice
 PoE enabled
 2 LCDs (Main + DSS)
 Intelligent DSS keys
 Handset / hands-free / headset mode
 Desktop stand / wall-mounted (need an additional wall hanging parts)
 Optional external power supply
Phone Functions
 Local phonebook (2000 entries)
 Remote phonebook (XML/LDAP, 2000 entries)
 Call logs (in/out/missed, 1000 entries)
 Blocked/Allowed List
 Screen saver
 Voice message waiting indication (VMWI)
 Programmable DSS/soft keys
 Network time synchronization
 Built-in Bluetooth4.2 : support Bluetooth headset/ Bluetooth of mobile device
 Support Wi-Fi Dongle (Via WF20)
 Support Poly wireless headset (through Poly APD-80 EHS cable)
 Support Jabra wireless headset (through Fanvil EHS20 EHS cable)
 Support recording (through flash drive or server)
 Action URL / Active URI
 uaCSTA

Audio
 HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz frequency response)
 HAC handset
 Wideband ADC/DAC 16KHz sampling
 Narrowband codec: G.711a/u, G.729A/B, iLBC, G.723.1, G.726
 Wideband codec: G.722, Opus
 Full-duplex Acoustic Echo Canceller (AEC)
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)
 Dynamic adaptive jitter buffer
 DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
 VQM voice quality monitoring
Network
 Physical: 10/100/1000Mbps ethernet, dual bridged port for PC bypass
 IP Mode:IPv4/IPv6/IPv4&IPv6
 IP Configuration: Static IP / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP / OpenVPN
 VLAN
 LLDP
 CDP
 QoS
 RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 IPv6
 LLDP
 CDP
 PPPoE
 802.1x
 L2TP
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR-069
 AES128 & AES256

Call Functions
 Call out / answer / reject
 Mute / unmute (microphone)
 Call hold / resume
 Call waiting
 Intercom
 Caller ID display
 Speed dial
 Anonymous call (hide caller ID)
 Call forward (Always/Busy/No Answer)
 Call transfer (Attended/Unattended)
 Call parking/pick-up (depending on server)
 Redial
 Do-Not-Disturb
 Auto-answering
 Voice message (with server)
 6-way audio conference
 Hot line
 Hot desking

Physical Specifications
 Main LCD: 3.5-inch (480×320) color screen
 DSS key-mapping LCD: 2.4-inch (240×320) color screen
 Keypad: 42 keys, including
 4 Line keys (with LED indicator light)
 4 Soft-keys
 6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial)
 4 Navigation keys
 1 OK key
 12 Standard phone digits keys
 3 Volume control keys (Up/Down/Mute (Microphone))
 6 DSS keys (with LED indicator light)
 1 Page-switch (PS) key (with LED indicator light)
 1 Hands-free key (with LED indicator light)
 HD handset (RJ9) x1
 Standard RJ9 handset cord x1
 1.5M CAT.5E ethernet cable x1
 Back rack x1
 Status indicator light x1 (Red)
 RJ9 port x2: handset x1, headset x1
 RJ45 port x2: network x1, PC x1 (bridged to network)
 USB2.0 port x1: Standard A, connect with flash driver
 DC port x1: Φ5.5×2.1x10mm
 Safety keyhole x1
 DC power input: DC5V / 2A
 Power consumption：standby：0.91W，high：4.74W (Power supply)
 Power consumption：standby：1.3W，high：6.81W (POE)
 Working temperature: 0~45℃
 Working humidity: 10~95%
 Installation:
 Desktop stand
 Wall-mounted (need an additional wall hanging parts)
 Color: black
 N.W/CTN: 11.85 kg
 G.W/CTN 12.66 kg
 Device dimensions:
 Desktop stand (angles 1: 45 degree): 214×188.6×181.1 mm
 Desktop stand (angles 2: 50 degree): 214×180.5×190.1 mm
 Wall-mounted: 214×119.4×219.1 mm
 Gift box dimensions: 315x228x84 mm
 Outer CTN dimensions: 476x440x335 mm (10 PCS)
