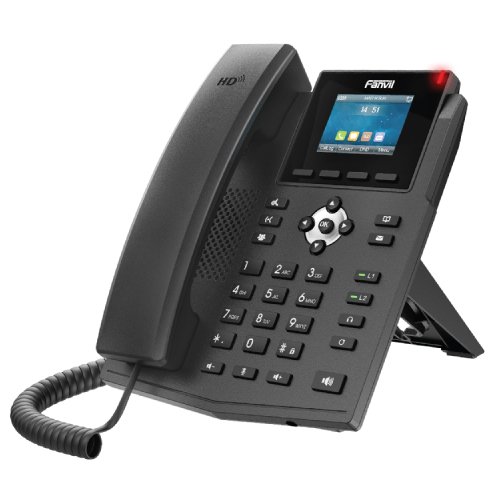

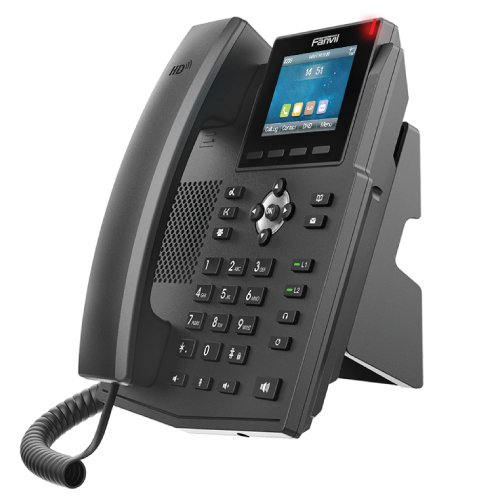

Fanvil X3SW WiFi Phone

Generic
⚫ 4 SIP Lines
⚫ HD Voice
⚫ Built-in 2.4GHz Wi-Fi
⚫ 2.4-inch color screen
⚫ Handset / Hands-free / Headset mode
⚫ Desktop Stand / Wall-mounted (need an additional wall hanging parts)
⚫ External Power Supply
Phone Functions
⚫ Local Phonebook (1000 entries)
⚫ Remote Phonebook (XML/LDAP, 1000 entries)
⚫ Call logs (In/Out/Missed, 600 entries)
⚫ Blocked list/Allowed list
⚫ Screen saver
⚫ Voice Message Waiting Indication (VMWI)
⚫ Programmable DSS/Soft keys
⚫ Network Time Synchronization
⚫ Built-in 2.4GHz Wi-Fi
➢ Network standard: IEEE 802.11b/g/n
➢ Transmission rate: Up to 150Mbps (dynamic)
⚫ Support Poly wireless headset (Through Poly APD-80 EHS Cable)

⚫ Hot desking

Audio
⚫ HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
⚫ HAC handset
⚫ Wideband ADC/DAC 16KHz Sampling
⚫ Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
⚫ Wideband Codec: G.722, Opus
⚫ Full-duplex Acoustic Echo Canceller (AEC)
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer
⚫ DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
⚫ VQM voice quality monitoring
Network
⚫ Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
⚫ IP Mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Configuration: Static IP / DHCP / PPPoE
⚫ Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
⚫ Network Access Control: 802.1x
⚫ VPN: L2TP / OpenVPN
⚫ VLAN
⚫ LLDP
⚫ QoS
⚫ RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Call Functions
⚫ Call out / Answer / Reject
⚫ Mute / Unmute (Microphone)
⚫ Call Hold / Resume
⚫ Call Waiting
⚫ Intercom
⚫ Caller ID Display
⚫ Speed Dial
⚫ Anonymous Call (Hide Caller ID)
⚫ Call Forward (Always/Busy/No Answer)
⚫ Call Transfer (Attended/Unattended)
⚫ Call Parking/Pick-up (Depending on server)
⚫ Redial
⚫ Do-Not-Disturb
⚫ Auto-Answering
⚫ Voice Message (With server)
⚫ 6-way Audio Conference
⚫ Hot Line

⚫ Web Management Portal
⚫ Web-based Packet Dump
⚫ Configuration Export / Import
⚫ Phonebook Import/Export
⚫ Firmware Upgrade
⚫ Syslog
Physical Specifications
⚫ LCD: 2.4-inch (320×240) Color Screen
⚫ Keypad: 34 keys, including
➢ 4 Soft-keys
➢ 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
➢ 2 Line keys (With LED Indicator Light)
➢ 4 Navigation keys
➢ 1 OK key
➢ 12 Standard Phone Digits keys
➢ 3 Volume Control keys (Up/Down/Mute (Microphone))
➢ 1 Hands-free key
⚫ HD Handset (RJ9) x1
⚫ Standard RJ9 Handset Wire x1
⚫ 1.5M CAT.5E Ethernet Cable x1
⚫ Back Rack x1
⚫ Power adapter x1
⚫ Status Indicator Light x1 (Red)
⚫ RJ9 Port x2: Handset x1, Headset x1
⚫ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
⚫ Safety Keyhole x1
⚫ DC Power Input: DC5V / 1A
⚫ Power Consumption: Idle 0.9~1.3W, Peak 2.98~3.52W
⚫ Working Temperature: 0~45℃
⚫ Working Humidity: 10~95%
⚫ Qty/CTN：10pcs
⚫ N.W/CTN: 10.0kg
⚫ G.W/CTN: 10.73kg
⚫ Installation:
➢ Desktop Stand
➢ Wall-mounted (need an additional wall hanging parts)
⚫ Color: Black
⚫ Device Dimensions:
➢ Desktop Stand (Angles 1): 169×186.3×174.5 mm
➢ Desktop Stand (Angles 2): 169×177.6×183.7 mm
➢ Wall-mounted: 169×115.6×212.5 mm
⚫ Gift Box Dimensions: 274x215x68 mm
⚫ Outer CTN Dimensions: 450x360x294 mm (10 PCS)
