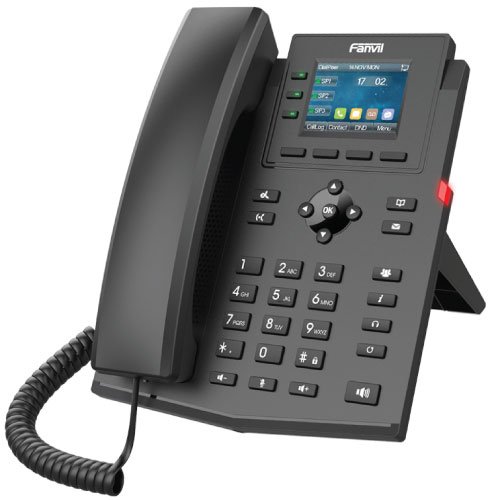

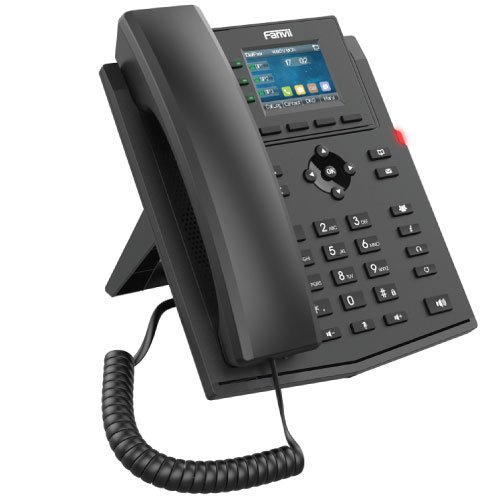

Fanvil X303P Enterprise IP Phone

Generic
⚫ 4 SIP Lines
⚫ HD Voice
⚫ PoE Enabled (only X303P)
⚫ 2.4-inch color screen
⚫ Handset / Hands-free / Headset mode
⚫ Desktop Stand / Wall mountable (optional)
⚫ Optional External Power Supply
Phone Functions
⚫ Local Phonebook (1000 entries)
⚫ Remote Phonebook (XML/LDAP, 1000 entries)
⚫ Call logs (In/Out/Missed, 600 entries)
⚫ Blocked List/Allowed List
⚫ Screen saver
⚫ Voice Message Waiting Indication (VMWI)
⚫ Programmable DSS/Soft keys
⚫ Network Time Synchronization
⚫ Support Poly wireless headset (Through Poly APD-80 EHS Cable)
⚫ Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
⚫ Support Recording (Through Server)
⚫ Action URL / Active URI
⚫ uaCSTA
Call Functions
⚫ Call out / Answer / Reject

⚫ DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
⚫ VQM voice quality monitoring

Network
⚫ Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
⚫ IP Mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Configuration: Static IP / DHCP / PPPoE
⚫ Network Access Control: 802.1x
⚫ VPN: L2TP / OpenVPN
⚫ VLAN
⚫ LLDP
⚫ QoS
⚫ RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Physical Specifications

⚫ Mute / Unmute (Microphone)
⚫ Call Hold / Resume
⚫ Call Waiting
⚫ Intercom
⚫ Caller ID Display
⚫ Speed Dial
⚫ Anonymous Call (Hide Caller ID)
⚫ Call Forward (Always/Busy/No Answer)
⚫ Call Transfer (Attended/Unattended)
⚫ Call Parking/Pick-up (Depending on server)
⚫ Redial
⚫ Do-Not-Disturb
⚫ Auto-Answering
⚫ Voice Message (On server)
⚫ 6-way Audio Conference
⚫ Hot Line
⚫ Hot Desking
Audio
⚫ Wideband ADC/DAC 16KHz Sampling
⚫ Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
⚫ Wideband Codec: G.722, Opus
⚫ Full-duplex Acoustic Echo Canceller (AEC)
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer

⚫ LCD: 2.4-inch (320×240) Color Screen
⚫ Keypad: 36 keys, including
➢ 4 Soft-keys
➢ 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook /MWI/Headset/Redial/Hands-free)
➢ 3 Line keys (With LED Indicator Light)
➢ 4 Navigation keys
➢ 1 OK key
➢ 12 Standard Phone Digits keys
➢ 3 Volume Control keys (Up/Down/Mute (Microphone))
⚫ Handset (RJ9) x1
⚫ Standard RJ9 Handset Wire x1
⚫ 1.5M CAT.5E Ethernet Cable x1
⚫ Desktop Stand x1
⚫ Status Indicator Light x1 (Red)
⚫ RJ9 Port x2: Handset x1, Headset x1
⚫ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
⚫ Security Slot x1
⚫ DC Power Input: DC5V / 0.6A
⚫ Power Consumption (Adapter): 0.84~1.43W
⚫ Power Consumption (PoE): 1.32~2.09W
⚫ Working Temperature: 0~45℃
⚫ Working Humidity: 10~95%
⚫ Installation:
➢ Desktop Stand
➢ Wall mountable (optional)
⚫ Color: Black
⚫ N.W/CTN: 8.95kg(X303), 8.5kg(X303P)
⚫ G.W/CTN: 9.66kg(X303), 9.21kg(X303P)
⚫ Device Dimensions:
➢ Desktop Stand (45°): 169×201.1×177.4 mm
➢ Desktop Stand (50°): 169×191.9×185.8 mm
➢ Wall mountable: 169×120.1×213.7 mm
⚫ Gift Box Dimensions: 250x220x55mm
⚫ Outer CTN Dimensions: 460x300x270mm (10 PCS)
