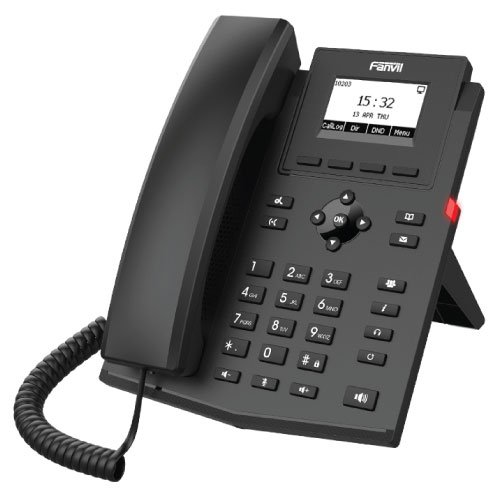

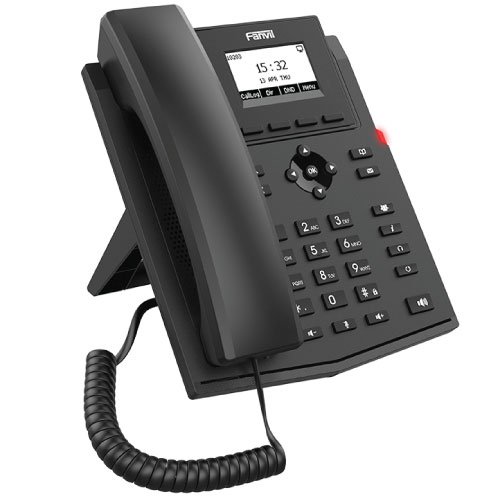

Fanvil X301P Entry Level IP Phone

Generic
 2 SIP Lines
 HD Voice
 PoE Enabled(only X301P)
 Dot-matrix display screen
 Handset / Hands-free / Headset mode
 Desktop Stand / Wall mountable (optional)
 Optional External Power Supply
Phone Functions
 Local Phonebook (1000 entries)
 Remote Phonebook (XML/LDAP, 1000 entries)
 Call logs (In/Out/Missed, 600 entries)
 Blocked List/Allowed List
 Voice Message Waiting Indication (VMWI)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Support Poly wireless headset (Through Poly APD-80 EHS Cable)
 Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
 Support Recording (Through Server)
 Action URL / Active URI
 uaCSTA

Call Functions
 Call out / Answer / Reject

 Dynamic Adaptive Jitter Buffer
 DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
 VQM voice quality monitoring

Network
 Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
 IP Mode: IPv4/IPv6/IPv4&IPv6
 IP Configuration: Static IP / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP / OpenVPN
 VLAN
 LLDP
 QoS
 RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Audio
 Wideband ADC/DAC 16KHz Sampling
 Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
 Wideband Codec: G.722, Opus
 Full-duplex Acoustic Echo Canceller (AEC)
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)

Physical Specifications
 LCD: 132×64 pixel graphical LCD with backlight
 Keypad: 33 keys, including
 4 Soft-keys
 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook /MWI/Headset/Redial/Hands-free)
 4 Navigation keys
 1 OK key
 12 Standard Phone Digits keys
 3 Volume Control keys (Up/Down/Mute (Microphone))
 Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT.5E Ethernet Cable x1
 Desktop Stand x1
 Status Indicator Light x1 (Red)
 RJ9 Port x2: Handset x1, Headset x1
 RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
 Security Slot x1
 DC Power Input: 5V/0.6A
 Power Consumption(Adapter): 0.8~1.29W
 Power Consumption(PoE): 1.25~1.86W
 Working Temperature: 0~45℃
 Working Humidity: 10~95%
 Installation:
 Desktop Stand
 Wall mountable (optional )
 Color: Black
 N.W/CTN: 8.88kg(X301), 8.83kg(X301P)
 G.W/CTN: 9.68kg(X301), 9.63kg(X301P)
 Device Dimensions:
 Desktop Stand (45°): 169×201.1×177.4 mm
 Desktop Stand (50°): 169×191.9×185.8 mm
 Wall mountable: 169×120.1×213.7 mm
 Gift Box Dimensions: 250x220x55mm
 Outer CTN Dimensions: 460x300x270mm(10 PCS)
