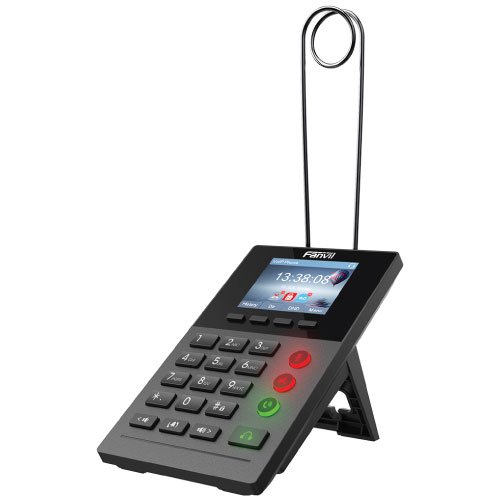

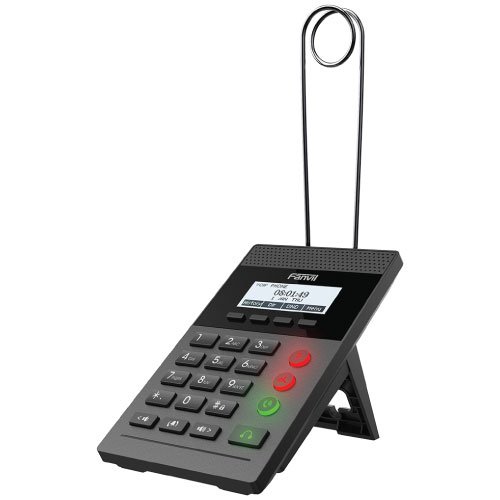

Fanvil X2C Call Center PoE IP Phone Set

Generic
⚫ 2 SIP Lines
⚫ HD Voice
⚫ PoE Enabled (X2CP/X2P)
⚫ Headset mode
⚫ Optional External Power Supply (X2CP and X2P Optional)
Phone Features
⚫ Local Phonebook (500 entries)
⚫ Remote Phonebook (XML/LDAP, 500 entries)
⚫ Call logs (In/out/missed, 600 entries)
⚫ Blocked list/Allowed list
⚫ Screen saver(Only X2P)
⚫ Voice Message Waiting Indication (VMWI)
⚫ Programmable Soft keys
⚫ Network Time Synchronization
⚫ Support Poly wireless headset (Through Poly APD-80 EHS Cable)
⚫ Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
⚫ Support Recording (Through Server Recording )
⚫ Action URL / Active URI
⚫ uaCSTA

⚫ Wideband Codec: G.722
⚫ Full-duplex Acoustic Echo Canceller (AEC)
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer up to 300ms
⚫ DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Call Features
⚫ Call out / Answer / Reject
⚫ Mute / Unmute (Microphone)
⚫ Call Hold / Resume
⚫ Call Waiting
⚫ Intercom
⚫ Caller ID Display
⚫ Anonymous Call (Hide Caller ID)
⚫ Call Forwarding (Always/Busy/No Answer)
⚫ Call Transfer (Attended/Unattended)
⚫ Call Parking/Pick-up (Depending on server)
⚫ Redial
⚫ Do-Not-Disturb
⚫ Auto-Answering
⚫ Voice Message (On server)
⚫ 3-way Conference
⚫ Hot Line
⚫ Hot desking
Audio
⚫ Wideband ADC/DAC 16KHz Sampling
⚫ Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB

⚫ Phonebook Import/Export
⚫ Firmware Upgrade
⚫ Syslog

Physical Specifications
⚫ LCD x1:
➢ X2C/X2CP: 128×48 dot-matrix backlit display
➢ X2P: 2.8 inch (320×240) color-screen
⚫ Keypad: 23 keys, including
➢ 4 Soft-keys
➢ 4 LED Function keys (Mute, Hold, Auto Answer, Headset )
➢ 12 Standard Phone Digits keys
➢ 2 Volume Control keys, Lower/Increase(Left/Right)
➢ 1 Volume Select key, (Page Down)
⚫ 1.5M CAT5 Ethernet Cable x1
⚫ Earphone bracket x1
⚫ Back Rack x1
⚫ 3.5mm Port x2: Headset x1, Foot pedal x1
⚫ RJ9 Port x2: Headset x1, Monitor earphone x1
⚫ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
⚫ DC Power Input: 5V/0.6A
⚫ Power Consumption: Idle 0.9~1.6W, Peak 1.6~2.5W
⚫ Working Temperature: 0~45℃
⚫ Working Humidity: 10~95%
⚫ Installation: Desktop Stand
⚫ Qty/CTN：20pcs
⚫ N.W/CTN: 21.1kg
➢ X2C/X2CP: 11.4kg
➢ X2P: 11.2kg
⚫ G.W/CTN: 22.22kg
➢ X2C/X2CP: 12.28kg
➢ X2P: 11.92kg
⚫ Color: Black
⚫ Device Dimensions
➢ Do not contain Earphone bracket: 100.8x147x107.4mm
➢ Contain Earphone bracket: 100.8×155.4x246mm
⚫ Gift Box Dimensions:
➢ X2C/X2CP: 200x175x52mm
➢ X2P: 196.98×109.98x65mm
⚫ Outer CTN Dimensions:
➢ X2C/X2CP: 555x370x220mm (20 PCS)
➢ X2P: 455x340x220mm (20 PCS)
